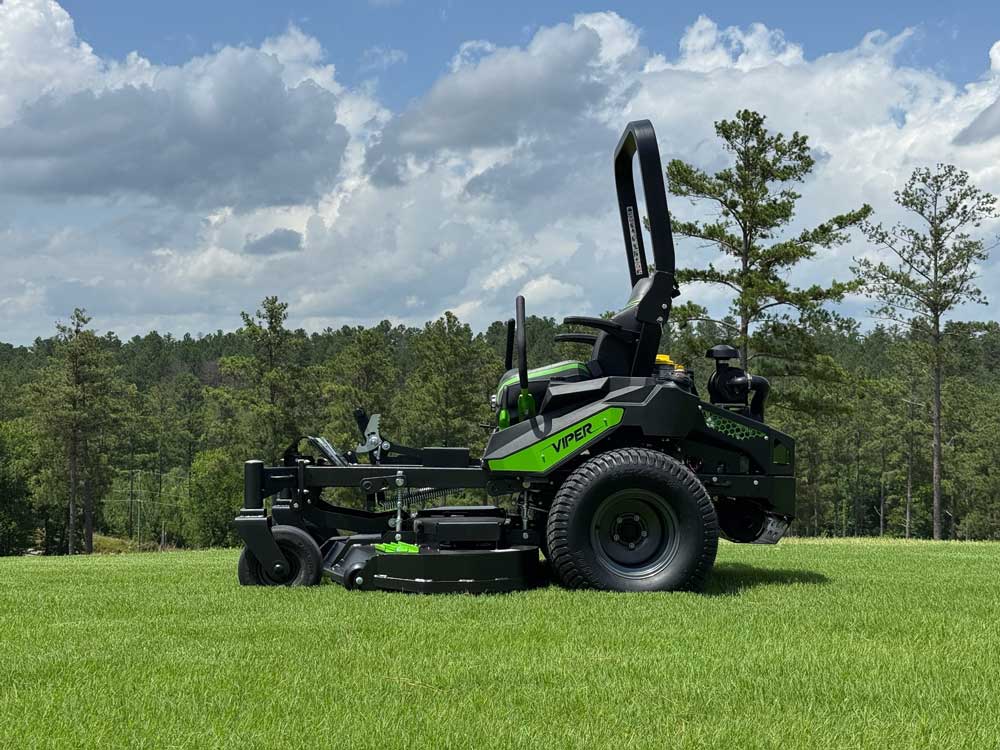

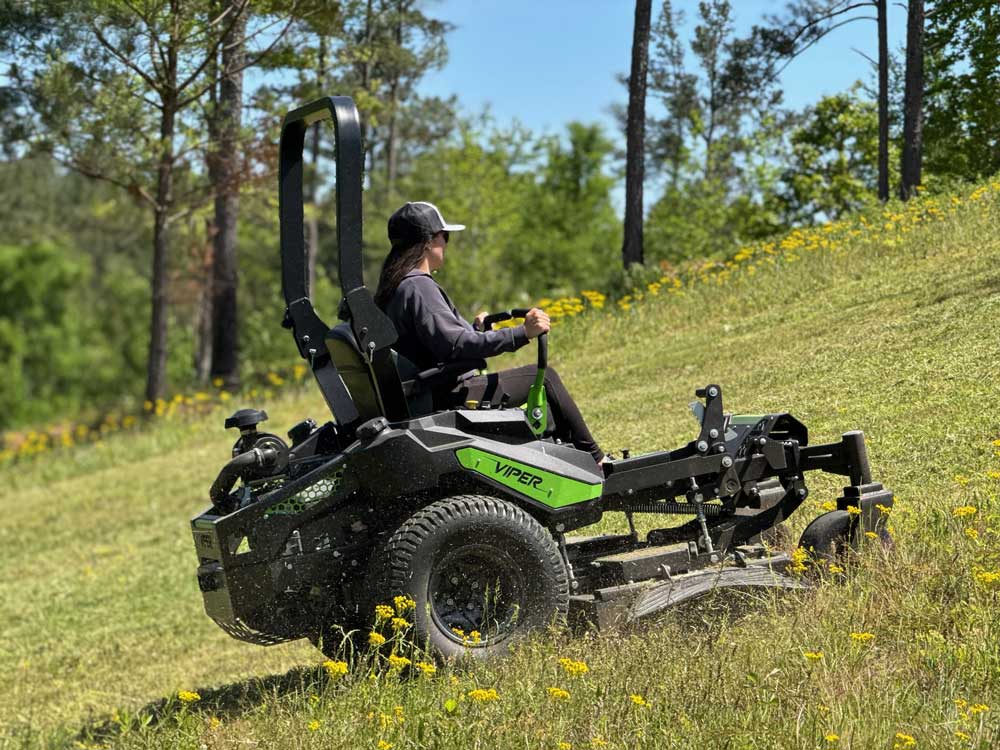

V-800 Series
The Viper V-800 Series is our flagship mower, designed for those who demand the very best. Available in three models, it features recessed anti-scalping wheels and a height-adjustable front internal baffling, letting you customize performance to your terrain. Built tough with cast-iron spindles that include dual-row, self-lubricating bearings, dual fuel tanks, and industry-largest tires on the XP and Elite models, the 800 Series delivers all-day power and lasting durability. Operator-focused features like foot-operated deck height, suspension seats, and ample storage boost comfort and productivity. The V-800 Series is made to tackle the toughest commercial mowing jobs with lasting strength and efficiency.
V-800 PRO QUICK SPECS
DECK SIZE & CUT HEIGHT
54″ & 60″ | 1.5″-5.5″
TOP SPEED:
11 MPH
FUEL CAPACITY:
14 GAL
TIRES:
Rear: 24″ X 12″ (60″)
Front: 13″ x 6.5″ Solid
TRANSMISSION:
Hydro-Gear ZT-3800
ENGINE OPTIONS:
-Kawasaki FT730, 24 HP
-Vanguard, 26 HP
V-800 XP QUICK SPECS
DECK SIZE & CUT HEIGHT
54″ & 60″ | 1.5″-5.5″
TOP SPEED:
13 MPH
FUEL CAPACITY:
14 GAL
TIRES:
Rear: 26″ X 14″ (60″)
Front: 13″ x 6.5″ Solid
TRANSMISSION:
Hydro-Gear ZT-4400
ENGINE OPTIONS:
-Kawasaki FX850 EVO EFI, 34.5 HP
-Vanguard Big Block, 36 HP
V-800 ELITE QUICK SPECS
DECK SIZE & CUT HEIGHT
60″ | 1.5″-5.5″
TOP SPEED:
14.5 MPH
FUEL CAPACITY:
14 GAL
TIRES:
Rear: 26″ X 14″ (60″)
Front: 13″ x 6.5″ Solid
TRANSMISSION:
Hydro-Gear ZT-5400
ENGINE OPTIONS:
-Kawasaki FX1000 EFI, 38.5 HP
-Vanguard Big Block EFI Oil Guard, 40 HP
*Models, accessories, and specifications are subject to change due to product enhancement.
Common Features
Every Viper 800 Series mower is built with industrial-grade core specifications standard. Zero shortcuts, maximum durability, engineered to dominate commercial work.

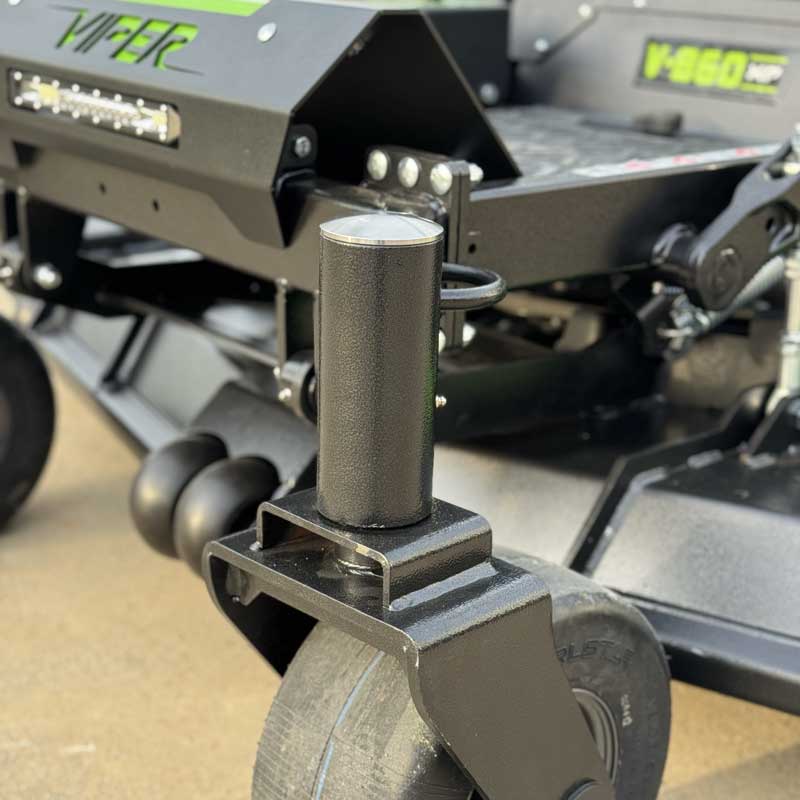

EXTREME-Duty Frame
With thick-walled rectangular tubing, reinforcement in high-stress locations, a bolt-on front frame, and triple-reinforced front casters, it’s designed to outlast.

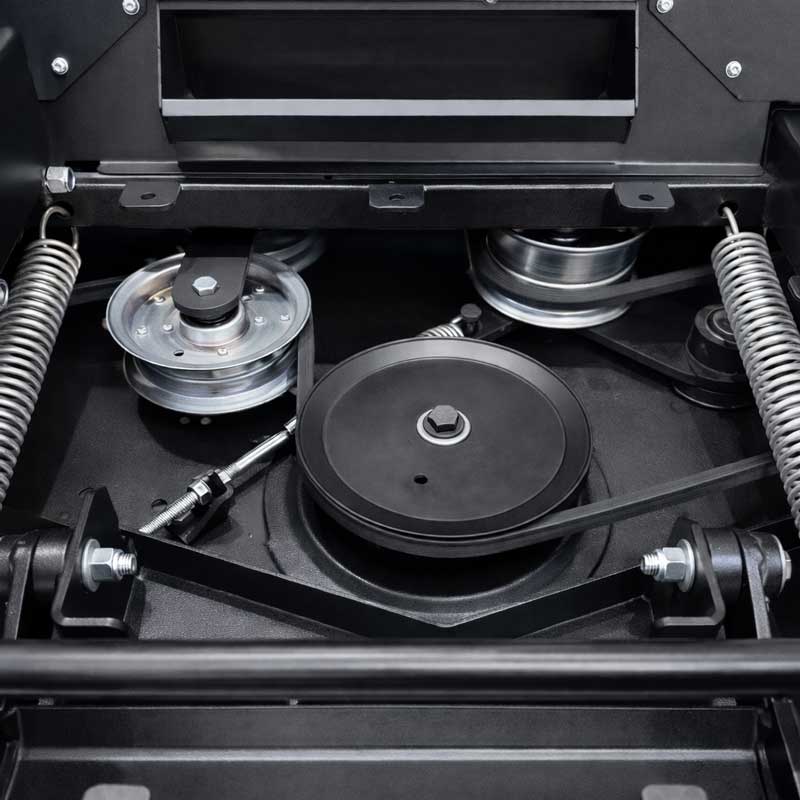

6-Gauge Deck
Heavy-duty 6-gauge deck shell reinforced on top, front, along both sides, and around the spindles. Features an oversized idler arm, double-bearing idler pulleys, and split-metal spindle pulleys.

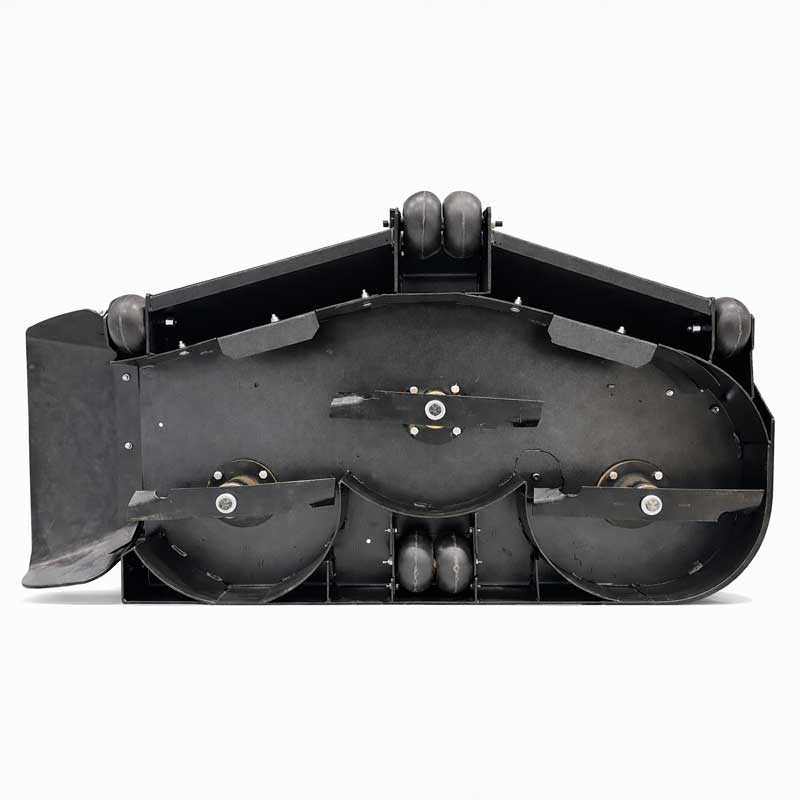

Adjustable Baffling
Adjustable 6-gauge inner baffle allows you to customize the baffling height for different types of grasses and conditions, from thin or weedy areas to thick, heavy grass, as well as for mulching and bagging.
CAST-IRON SPINDLES
Built with dual, double-row bearings to reduce friction and heat while requiring less engine power, delivering smooth operation and long-lasting durability.

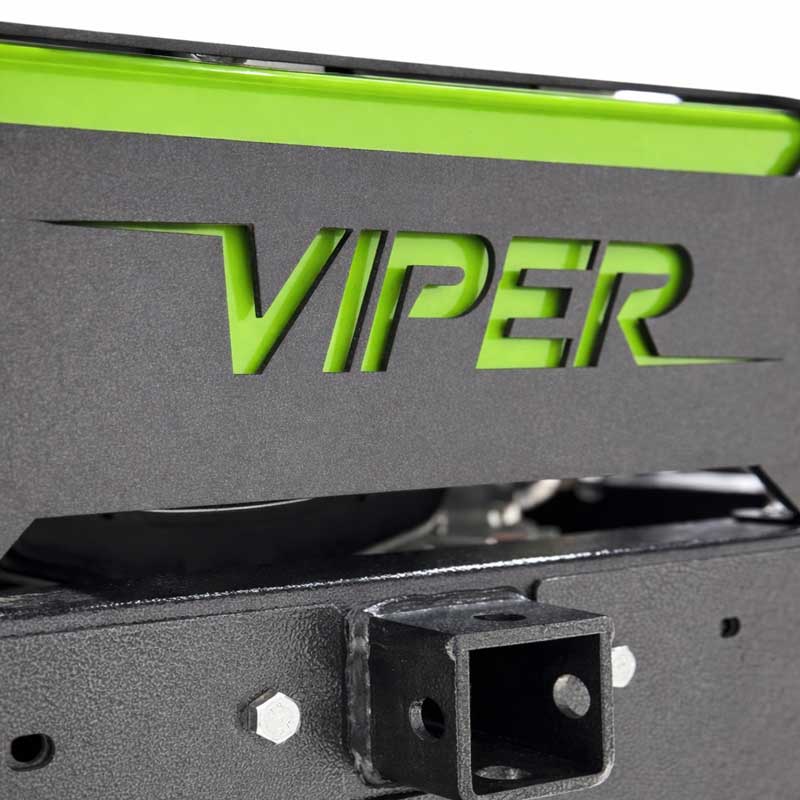

E-Coat & Powder Coat
Commercial multi-stage finishing process. Electro-coating base with thick, durable powder coat gives maximum corrosion resistance.

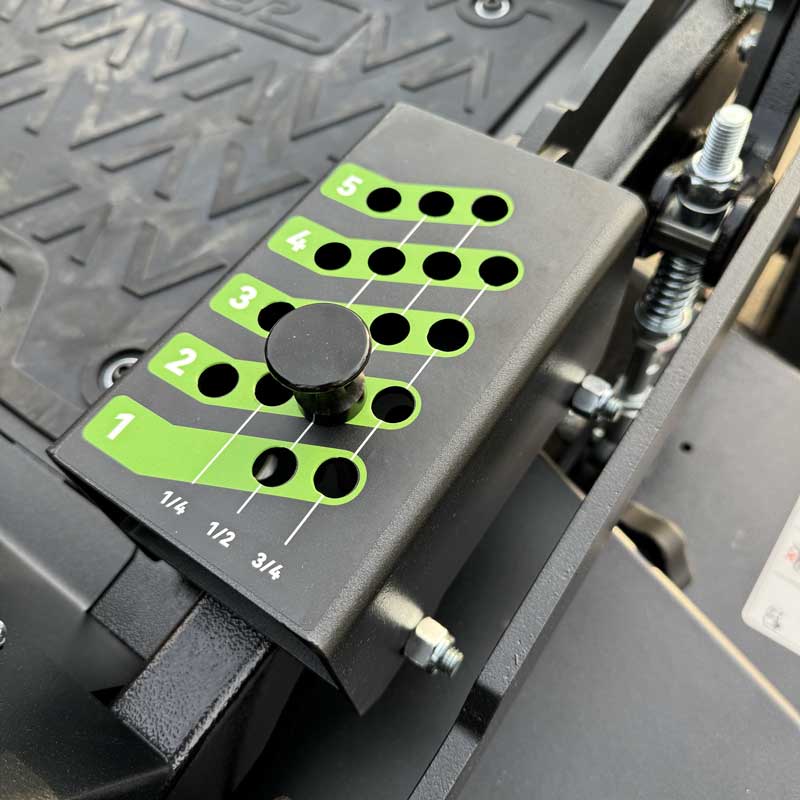

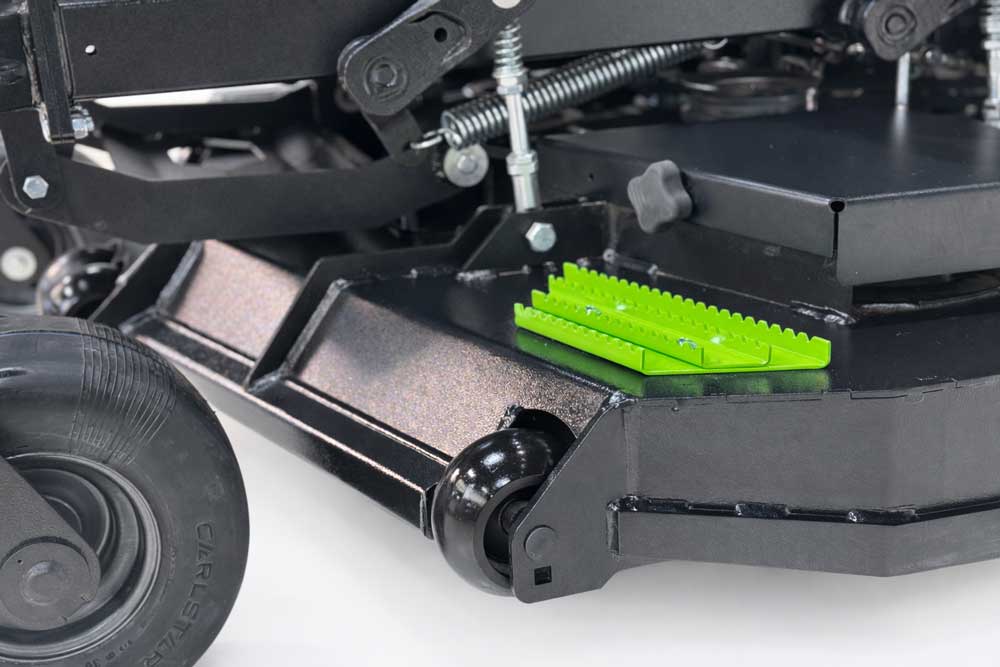

Deck Height Pin

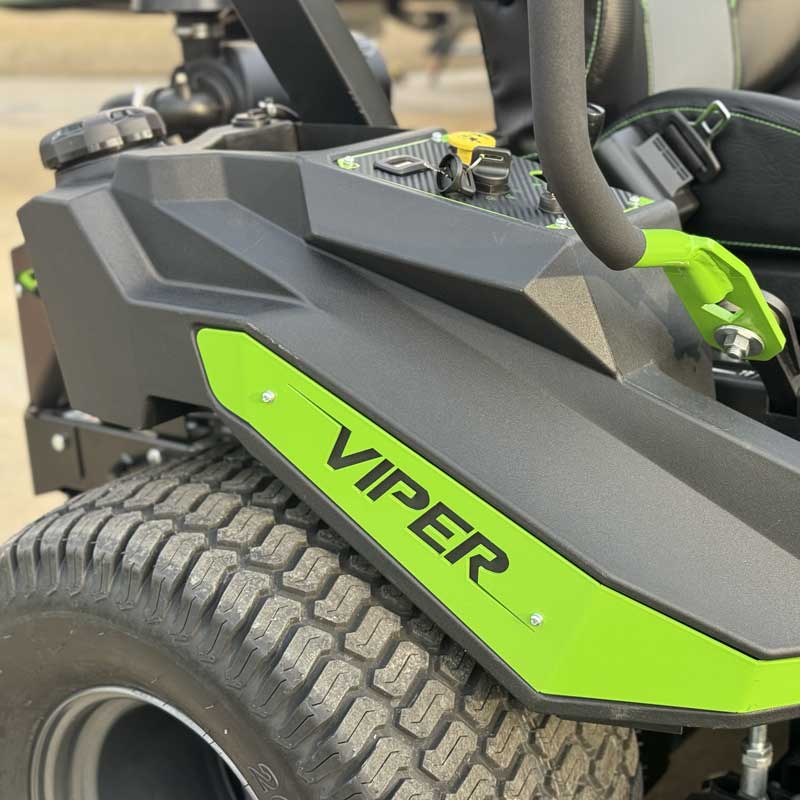

14 Gallon Fuel Tanks

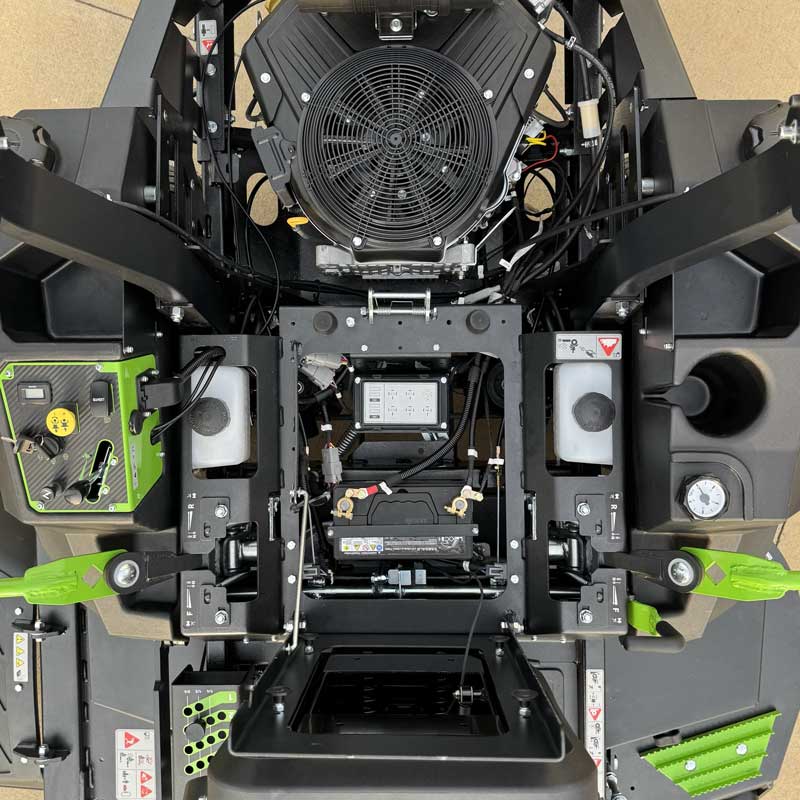

Automotive-Style Wiring
With fully sealed Deutsch connectors and a weatherproof fuse and relay box, no one does it better.

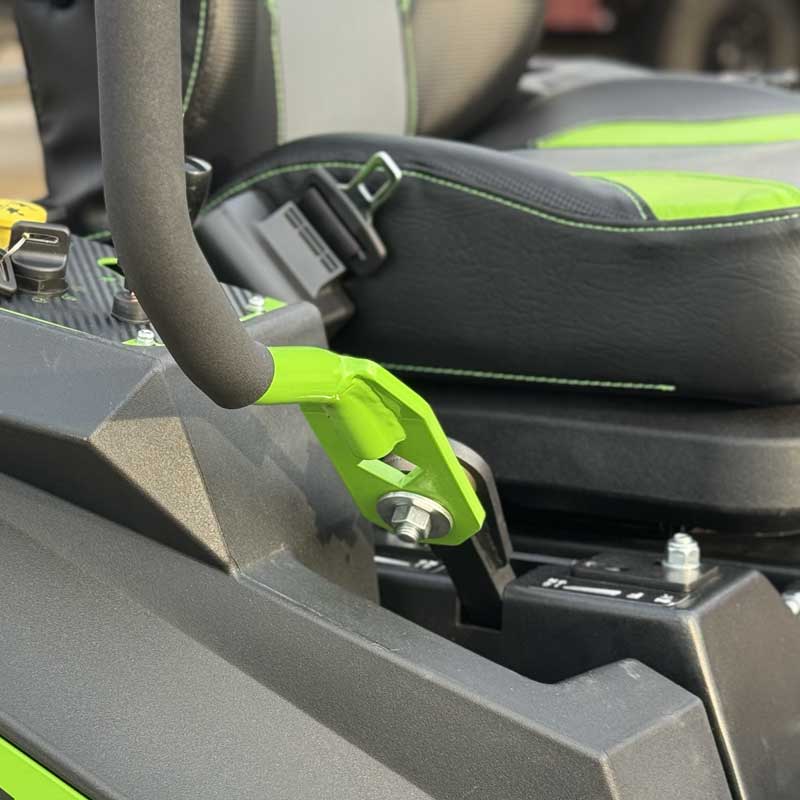

Adjustable Drive Handles
Ergonomic, dampened drive control handles adjust forward and back, as well as up and down, providing a comfortable, custom fit for virtually any operator.

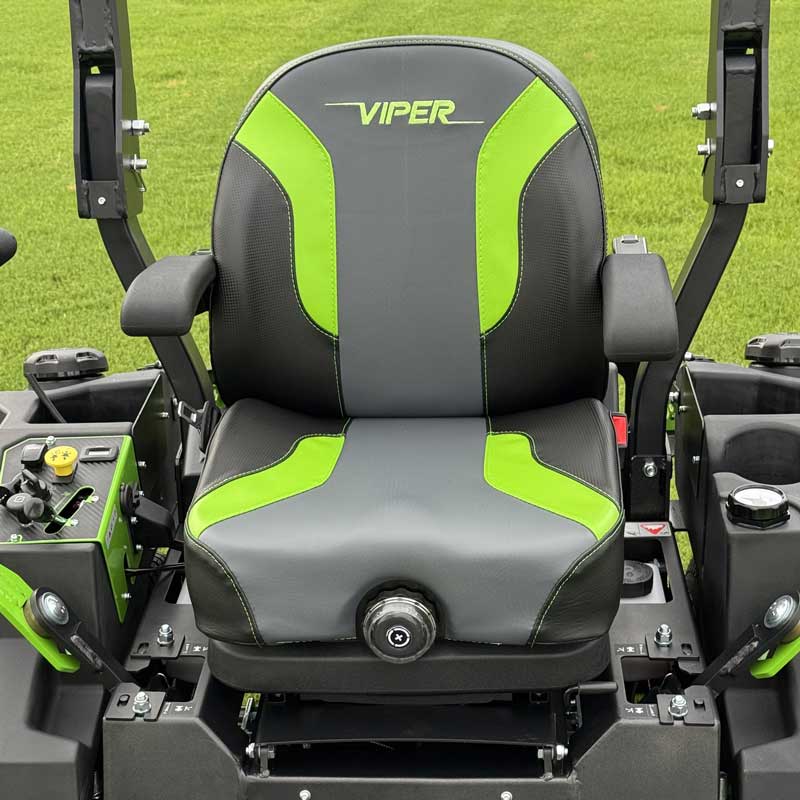

PREMIUM 3" Suspension Seat
Delivers enhanced comfort and reduced fatigue across rough, uneven terrain. Pro/XP seat reclines.

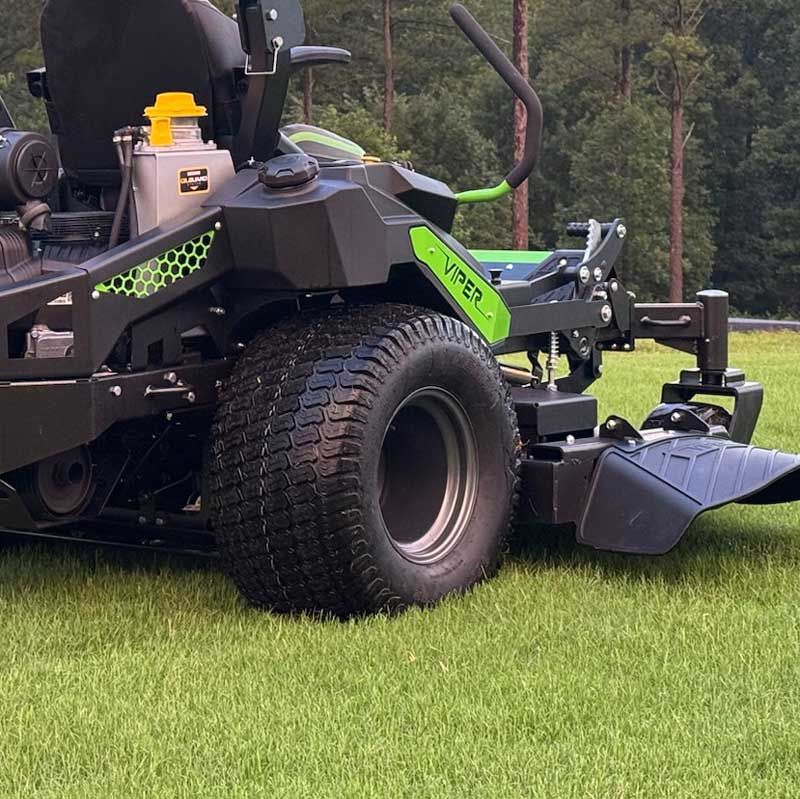

26 Inch Tires
26×14″ tires help you conquer even the toughest terrain (standard on XP and Elite models).
< Scroll to Explore >
Our V-800 Series is backed by our 4-3-2 Warranty for added confidence season after season. That includes a 4-year full limited warranty, 3 years of coverage for the engine and Hydro-Gear components, and unlimited hours during the first 2 years. Exclusions apply.
All V-800 Series Specs
| Specification | Details |
| Engine | 26hp Vanguard |
| Transmission | HydroGear ZT 3800 |
| Est. Speed | 10.5 mph |
| Est. Weight | 1320 lbs |
| Drive Tires | 24 x 12″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 Pro Narrow |
| Deck | 54″ 800 Deck Narrow |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 26hp Vanguard |
| Transmission | HydroGear ZT 3800 |
| Est. Speed | 10.5 mph |
| Est. Weight | 1330 lbs |
| Drive Tires | 24 x 12″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 Pro Standard |
| Deck | 60″ 800 Deck Standard |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 24hp Kawasaki FT730 |
| Transmission | HydroGear ZT 3800 |
| Est. Speed | 10.5 mph |
| Est. Weight | 1320 lbs |
| Drive Tires | 24 x 12″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 Pro Narrow |
| Deck | 54″ 800 Deck Narrow |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 24hp Kawasaki FT730 |
| Transmission | HydroGear ZT 3800 |
| Est. Speed | 10.5 mph |
| Est. Weight | 1330 lbs |
| Drive Tires | 24 x 12″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 Pro Standard |
| Deck | 60″ 800 Deck Standard |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 36hp Vanguard |
| Transmission | HydroGear ZT 4400 |
| Est. Speed | 13 mph |
| Est. Weight | 1420 lbs |
| Drive Tires | 26 x 12″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 XP/Elite Narrow |
| Deck | 54″ 800 Deck Narrow |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 36hp Vanguard |
| Transmission | HydroGear ZT 4400 |
| Est. Speed | 13 mph |
| Est. Weight | 1440 lbs |
| Drive Tires | 26 x 14″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 XP/Elite Standard |
| Deck | 60″ 800 Deck Standard |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 34.5hp FX820 EVO EFI |
| Transmission | HydroGear ZT 4400 |
| Est. Speed | 13 mph |
| Est. Weight | 1420 lbs |
| Drive Tires | 26 x 12″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 XP/Elite Narrow |
| Deck | 54″ 800 Deck Narrow |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 34.5hp FX820 EVO EFI |
| Transmission | HydroGear ZT 4400 |
| Est. Speed | 13 mph |
| Est. Weight | 1440 lbs |
| Drive Tires | 26 x 14″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 XP/Elite Standard |
| Deck | 60″ 800 Deck Standard |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1.5 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | 3″ Suspension Seat |
| Specification | Details |
| Engine | 38.5 Kawasaki FX1000 EFI |
| Transmission | HydroGear ZT 5400 |
| Est. Speed | 14.5 mph |
| Est. Weight | 1450 lbs |
| Drive Tires | 26 x 14″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 XP/Elite Standard |
| Deck | 60″ 800 Deck Standard |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | SeatKing Suspension Seat |
| Specification | Details |
| Engine | 40hp Vanguard OG |
| Transmission | HydroGear ZT 5400 |
| Est. Speed | 14.5 mph |
| Est. Weight | 1510 lbs |
| Drive Tires | 26 x 14″ |
| Front Tires | 13 x 6.5″ solid |
| Gas Tank | 14 gal |
| Frame | 800 XP/Elite Standard |
| Deck | 60″ 800 Deck Standard |
| Deck Shell Thickness | 6 gauge |
| ROPS | yes |
| Cut Height | 1 – 5.5″ |
| Deck Depth | 5.5″ |
| Spindles | Cast Iron, double row, long |
| Seat | SeatKing Suspension Seat |
